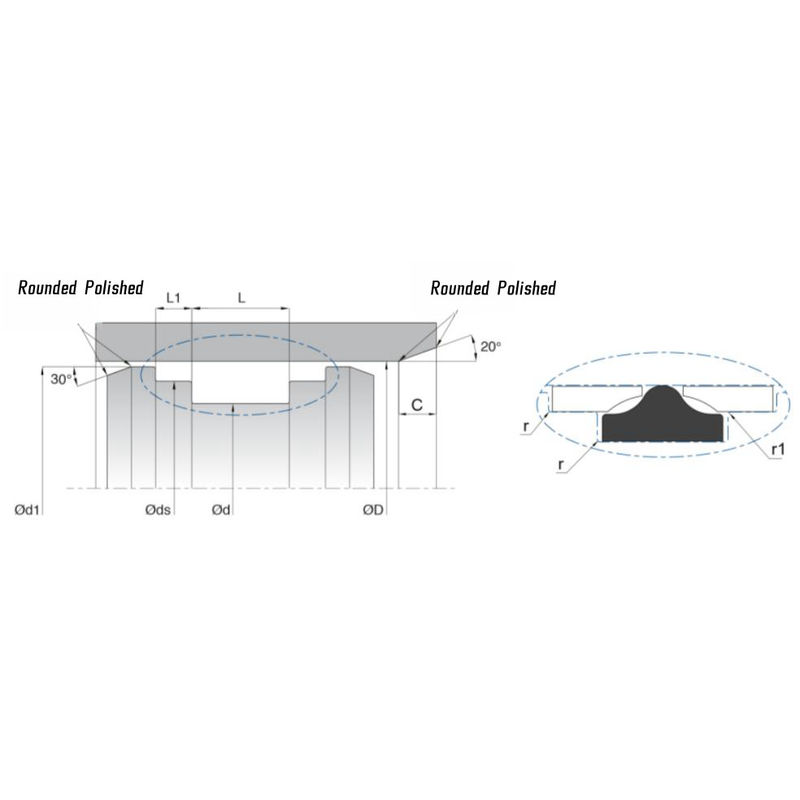

	D (H10)	d (h9)	d1 (h11)	ds (h9)	L (+0,2/-0)	L1 (+0,1/-0)	r	r1	C	Materiale
KL32 025.4-017.45	25.43	17.47	23.83	21.08	8.9	3.05	0.4	0.2	1.98	NBR
KL32 025-017.50	25	17.5	24	21.3	8.7	3.2	0.4	0.2	2	NBR
KL32 031.75-023.80	31.79	23.83	30.18	27.44	8.9	3.05	0.4	0.2	1.98	NBR
KL32 032-022	32	22	31	27.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 038.1-028.57	38.14	28.61	36.54	33.67	11.3	3.7	0.4	0.2	2.36	NBR
KL32 040-030	40	30	39	35.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 044.45-034.92	44.5	34.96	42.9	40.02	11.3	3.7	0.4	0.2	2.36	NBR
KL32 050.8-041.27	50.86	41.32	49.26	46.38	11.3	3.7	0.4	0.2	2.36	NBR
KL32 050-040	50	40	49	45.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 057.15-047.62	57.21	47.68	55.61	52.76	11.3	3.7	0.4	0.2	2.36	NBR
KL32 063.50-053.97	63.57	54.04	61.97	59.12	11.3	3.7	0.4	0.2	2.36	NBR
KL32 063-053	63	53	61.5	58.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 069.85-060.32	69.93	60.39	68.33	65.48	11.3	3.7	0.4	0.2	2.36	NBR
KL32 076.20-066.67	76.29	66.75	74.68	71.84	11.3	3.7	0.4	0.2	2.36	NBR
KL32 080-070	80	70	78.5	75.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 082.55-073.02	82.64	73.11	81.04	78.19	11.3	3.7	0.4	0.2	2.36	NBR
KL32 088.9-076.20	89	76.29	87.4	83.15	14.45	5.21	0.4	0.2	3.18	NBR
KL32 092-082	92	82	90.5	87.5	11.2	3.9	0.4	0.2	2.5	NBR
KL32 095.25-082.55	95.36	82.64	93.76	89.51	14.45	5.21	0.4	0.2	3.18	NBR
KL32 100-087	100	87	98.5	93.8	14.2	5.9	0.4	0.2	4	NBR
KL32 101.6-088.9	101.71	89	100.11	95.87	14.45	5.21	0.4	0.2	3.18	NBR
KL32 114.3-101.6	114.43	101.71	112.83	108.58	14.45	5.21	0.4	0.2	3.18	NBR
KL32 125-112	125	112	123.5	118.8	14.2	5.9	0.4	0.2	4	NBR
KL32 127-111.12	127.14	111.25	125.54	119.23	17.65	8.65	0.8	0.4	3.97	NBR
KL32 140-124	140	124	138.5	132	17.7	8.7	0.8	0.4	5	NBR
KL32 152.4-133.35	152.57	133.5	150.97	145.25	25.55	12.6	0.8	0.4	4.76	NBR
KL32 160-140	160	140	158.5	151.4	25.2	12.4	0.8	0.4	5	NBR
KL32 180-160	180	160	178.5	171.4	25.2	12.4	0.8	0.4	5	NBR
KL32 200-180	200	180	198.5	191.4	25.2	12.4	0.8	0.4	5	NBR

Sigilli a pistoni per cilindri idraulici semplici e compatti per macchine agricole

Sigilli di pistoni per cilindri idraulici semplici

Sigilli per pistoni per cilindri idraulici compatti

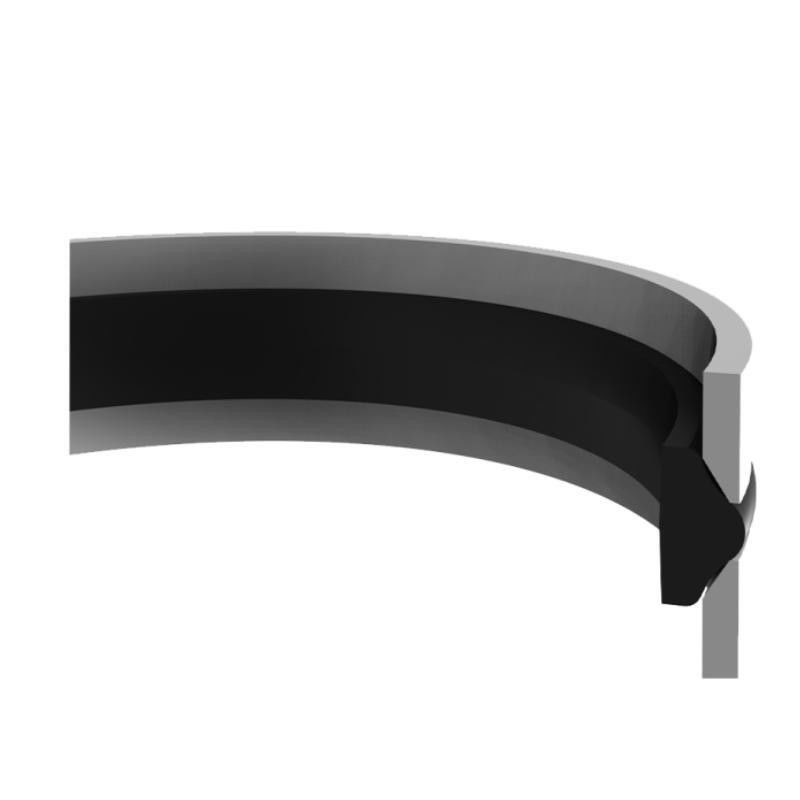

KL32 Sigillo compatto a doppia azione con un disegno semplice, costituito da un anello di tenuta e da anelli di guida elastomerici

KL32 è un sigillo compatto a doppia azione con un design semplice, costituito da un anello di tenuta in elastomero e da anelli guida

Vantaggi

Area di applicazione

Sigillo di pistone compatto

Sigilli a doppio effetto per pistoni

Sigillo di imballaggio del pistone
