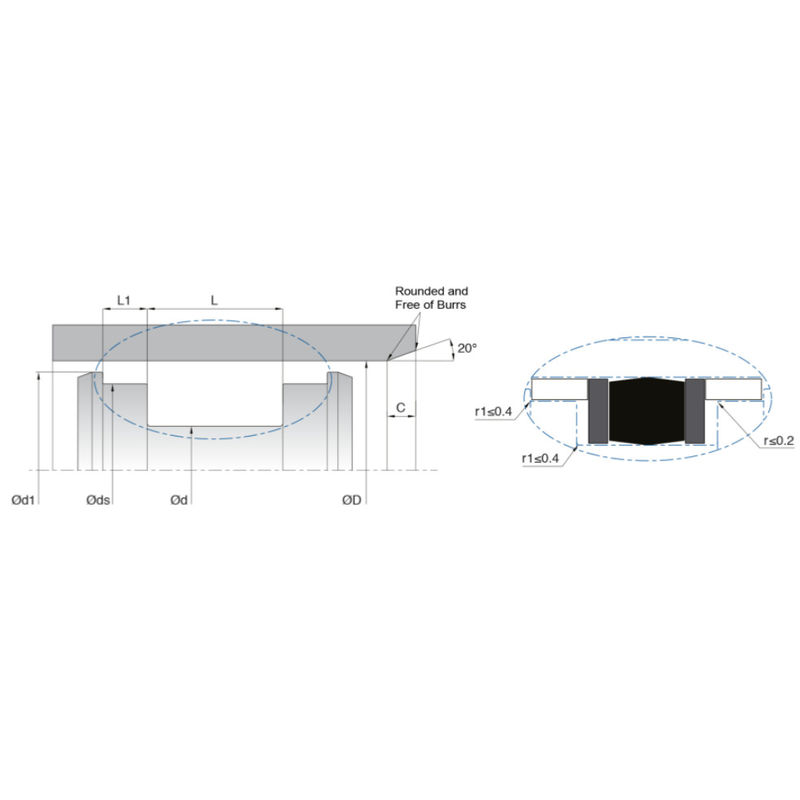

	D (H8)	d (h9)	L (+0,2/-0)	ds (h8)	d1 (± 0,1)	L1 (+0,2/-0)	C	Materiale
KL43 028.57-019.05	28.57	19.05	11.1	23.8	27.05	6.35	2.5	NBR
KL43 031.75-022.22	31.75	22.22	11.1	26.97	30.22	6.35	2.5	NBR
KL43 034.92-025.4	34.92	25.4	11.1	30.15	33.4	6.35	2.5	NBR
KL43 038.1-028.57	38.1	28.57	11.1	33.55	36.57	6.35	2.5	NBR
KL43 038.1-028.57/1	38.1	28.57	11.1	33.32	36.57	9.52	2.5	NBR
KL43 041.27-031.75	41.27	31.75	11.1	36.47	39.75	9.52	2.5	NBR
KL43 044.45-034.92	44.45	34.92	11.1	39.65	42.92	9.52	2.5	NBR
KL43 047.62-038.1	47.62	38.1	11.1	42.82	46.1	9.52	2.5	NBR
KL43 050.8-038.1	50.8	38.1	14.52	46.25	49.28	6.35	3.5	NBR
KL43 050.8-038.1/1	50.8	38.1	14.52	46	49.28	9.52	3.5	NBR
KL43 057.15-044.45	57.15	44.45	14.52	52.35	55.63	9.52	3.5	NBR
KL43 063.5-050.8	63.5	50.8	14.52	58.95	61.98	6.35	3.5	NBR
KL43 063.5-050.8/1	63.5	50.8	14.52	58.7	61.98	9.52	3.5	NBR
KL43 069.85-057.15	69.75	57.15	14.52	65	68.33	9.52	3.5	NBR
KL43 076.1-063.5	76.2	63.5	14.52	70.46	74.68	6.35	3.5	NBR
KL43 076.1-063.5/1	76.2	63.5	14.52	71.35	74.68	9.52	3.5	NBR
KL43 082.55-069.85	82.55	69.85	14.52	77.7	81.03	9.52	3.5	NBR
KL43 088.9-076.2	88.9	76.2	14.52	83.16	87.38	6.35	3.5	NBR
KL43 088.9-076.2/1	88.9	76.2	14.52	84.05	87.38	9.52	3.5	NBR
KL43 095.25-082.55	95.25	82.55	14.52	88.67	93.22	12.7	3.5	NBR
KL43 101.6-082.55	101.6	82.55	19.43	95.83	99.57	6.35	5	NBR
KL43 101.6-082.55/1	101.6	82.55	19.43	95.07	99.57	12.7	5	NBR
KL43 107.95-088.9	107.95	88.9	19.43	101.42	105.92	12.7	5	NBR
KL43 114.3-095.25	114.3	95.25	19.43	107.72	112.27	12.7	5	NBR
KL43 120.65-101.6	120.65	101.6	19.43	114.07	118.68	12.7	5	NBR
KL43 127-107.95	127	107.95	19.43	120.42	124.97	12.7	5	NBR
KL43 139.7-120.65	139.7	120.65	19.43	133.12	137.67	12.7	5	NBR
KL43 152.4-133.35	152.4	133.35	19.43	145.82	150.37	12.7	5	NBR
KL43 177.8-158.75	177.8	158.75	19.43	171.22	175.77	12.7	5	NBR
KL43 203.2-184.15	203.2	184.15	19.43	196.62	201.17	12.7	5	NBR

KL43 Sigilli idraulici a pistoni compatti 5 pezzi per cilindri industriali standard

KL43 Sigilli idraulici per pistoni

Sigilli per pistoni idraulici compatti

KL43 Tipo di sigillo del pistone del cilindro idraulico

KL43 Good Sealing Performance Compact Set è un sigillo a pistoni da 5 pezzi per cilindri industriali standard

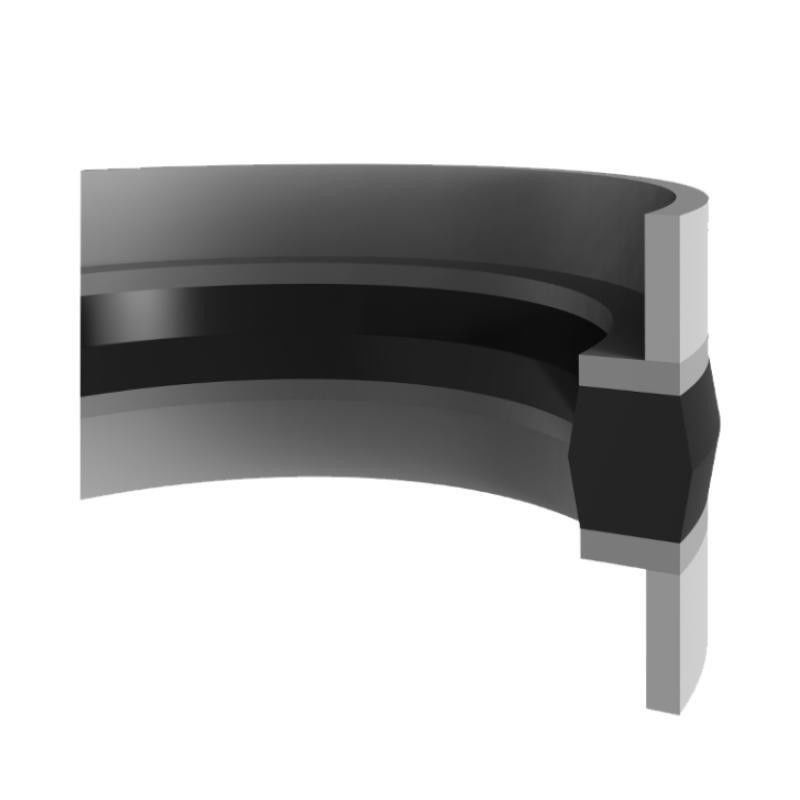

Il set compatto KL43 è un sigillo a pistoni in 5 pezzi costituito da un anello di tenuta in elastomero, due anelli di riserva in elastomero termoplastico e due anelli di guida POM.

Vantaggi

Area di applicazione

Sigillo di pistone compatto

Sigilli a doppio effetto per pistoni

Sigillo di imballaggio del pistone
