Luogo di origine:
CINESE
Marca:
Kelong
Certificazione:
ISO9001 / IRIS
Numero di modello:
KL10
Contattici

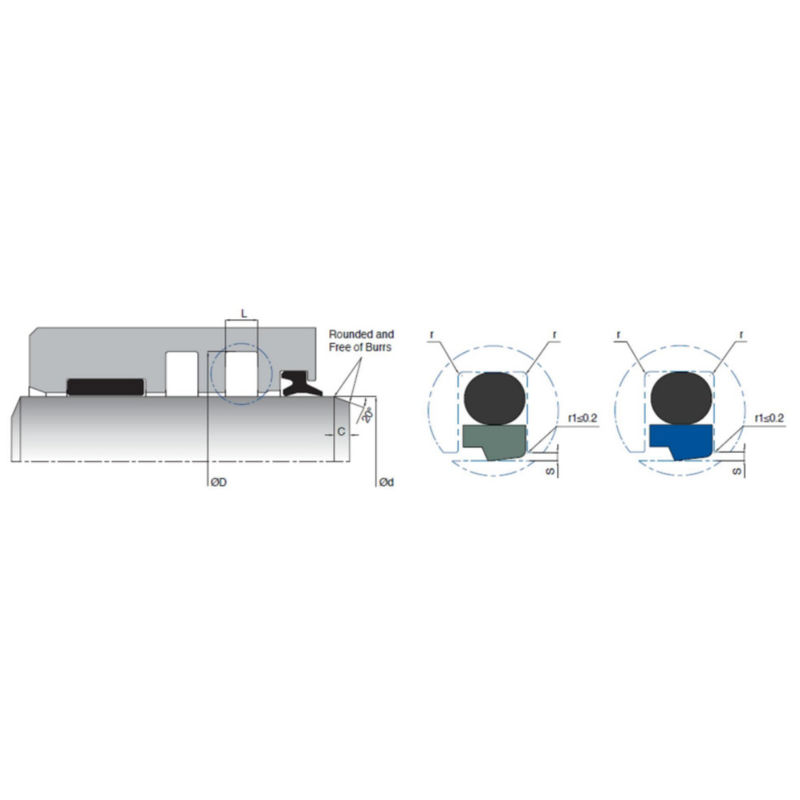

| d(f8) | D(H9) | L (+0,2/-0) | R | C | O-ring | MATERIALE | |
| KL10-003 | 3 | 7.9 | 2.2 | 0.4 | 2 | 4,48x1,78 | PTFE |
| KL10-004 | 4 | 8.9 | 2.2 | 0.4 | 2 | 5,28x1,78 | PTFE |
| KL10-005 | 5 | 9.9 | 2.2 | 0.4 | 2 | 6,75x1,78 | PTFE |
| KL10-006 | 6 | 10.9 | 2.2 | 0.4 | 2 | 7,66x1,78 | PTFE |
| KL10-008 | 8 | 12.9 | 2.2 | 0.4 | 2 | 9,66x1,78 | PTFE |
| KL10-008/1 | 8 | 15.3 | 3.2 | 0,6 | 2.5 | 10,78x2,62 | PTFE |
| KL10-009 | 9 | 16.2 | 3.2 | 0,6 | 2.5 | 11,91x2,62 | PTFE |
| KL10-009/1 | 9 | 13.9 | 2.2 | 0.4 | 2 | 10,82x1,78 | PTFE |
| KL10-010 | 10 | 14.9 | 2.2 | 0.4 | 2 | 11,11x1,78 | PTFE |
| KL10-010/1 | 10 | 17.3 | 3.2 | 0,6 | 2.5 | 13,10x2,62 | PTFE |
| KL10-012 | 12 | 19.3 | 3.2 | 0,6 | 2.5 | 13,95x2,62 | PTFE |
| KL10-012/1 | 12 | 16.9 | 2.2 | 0.4 | 2 | 14,00x1,78 | PTFE |
| KL10-014 | 14 | 21.3 | 3.2 | 0,6 | 2.5 | 17,13x2,62 | PTFE |
| KL10-014/1 | 14 | 18.9 | 2.2 | 0.4 | 2 | 15,60x1,78 | PTFE |
| KL10-015 | 15 | 19.9 | 2.2 | 0.4 | 2 | 17,17x1,78 | PTFE |
| KL10-015/1 | 15 | 22.3 | 3.2 | 0,6 | 2.5 | 17,86x2,62 | PTFE |
| KL10-016 | 16 | 23.3 | 3.2 | 0,6 | 2.5 | 18,72x2,62 | PTFE |
| KL10-016/1 | 16 | 20.9 | 2.2 | 0.4 | 2 | 17,17x1,78 | PTFE |
| KL10-018 | 18 | 25.3 | 3.2 | 0,6 | 2.5 | 20,29x2,62 | PTFE |
| KL10-018/1 | 18 | 22.9 | 2.2 | 0.4 | 2 | 18,77x1,78 | PTFE |
| KL10-019 | 19 | 29.7 | 4.2 | 1 | 3.5 | 23,4x3,53 | PTFE |
| KL10-020 | 20 | 30.7 | 4.2 | 1 | 3.5 | 24,99x3,53 | PTFE |
| KL10-020/1 | 20 | 27.3 | 3.2 | 0,6 | 2.5 | 22,22x2,62 | PTFE |
| KL10-022 | 22 | 32.7 | 4.2 | 1 | 3.5 | 26,58x3,53 | PTFE |
| KL10-022/1 | 22 | 29,5 | 3.2 | 0,6 | 2.5 | 25,07x2,62 | PTFE |
| KL10-022/2 | 22 | 29.3 | 3.2 | 0,6 | 2.5 | 25,07x2,62 | PTFE |
| KL10-025 | 25 | 35.7 | 4.2 | 1 | 3.5 | 29,75x3,53 | PTFE |
| KL10-025/1 | 25 | 32.3 | 3.2 | 0,6 | 2.5 | 26,64x2,62 | PTFE |
| KL10-026 | 26 | 36.7 | 4.2 | 1 | 3.5 | 29,75x3,53 | PTFE |
| KL10-028 | 28 | 38.7 | 4.2 | 1 | 3.5 | 32,92x3,53 | PTFE |
| KL10-028 Unità di elaborazione | 28 | 38.7 | 4.2 | 1 | 3.5 | 32,92x3,53 | PU |
| KL10-028/1 | 28 | 35.3 | 3.2 | 0,6 | 2.5 | 29,82x2,62 | PTFE |
| KL10-030 | 30 | 40.7 | 4.2 | 1 | 3.5 | 34,52x3,53 | PTFE |
| KL10-030/1 | 30 | 37.3 | 3.2 | 0,6 | 2.5 | 33,00x2,62 | PTFE |
| KL10-032 | 32 | 42.7 | 4.2 | 1 | 3.5 | 36,10x3,53 | PTFE |
| KL10-032/1 | 32 | 39.3 | 3.2 | 0,6 | 2.5 | 34,59x2,62 | PTFE |
| KL10-035 | 35 | 45.7 | 4.2 | 1 | 3.5 | 39,69x3,53 | PTFE |
| KL10-035/1 | 35 | 42.3 | 3.2 | 0,6 | 2.5 | 37,77x2,62 | PTFE |
| KL10-036 | 36 | 46.7 | 4.2 | 1 | 3.5 | 40,87x3,53 | PTFE |
| KL10-036 Unità di elaborazione | 36 | 46.7 | 4.2 | 1 | 3.5 | 40,87x3,53 | PU |
| KL10-036/1 | 36 | 43.3 | 3.2 | 0,6 | 2.5 | 37,77x2,62 | PTFE |
| KL10-036/1 UI | 36 | 43.3 | 3.2 | 0,6 | 2.5 | 37,77x2,62 | PU |
| KL10-037 | 37 | 47.7 | 4.2 | 1 | 3.5 | 41,28x3,53 | PTFE |
| KL10-038 | 38 | 48.8 | 4.2 | 1 | 3.5 | 42,86x3,53 | PTFE |
| KL10-038/1 | 38 | 53.1 | 6.3 | 1.3 | 5.5 | 43,82x5,33 | PTFE |
| KL10-040 | 40 | 55.1 | 6.3 | 1.3 | 5.5 | 47x5,33 | PTFE |
| KL10-040 Unità di elaborazione | 40 | 55.1 | 6.3 | 1.3 | 5.5 | 47x5,33 | PU |
| KL10-040/1 | 40 | 50,7 | 4.2 | 1 | 3.5 | 44,45x3,53 | PTFE |
| KL10-040/1 UI | 40 | 50,7 | 4.2 | 1 | 3.5 | 44,45x3,53 | PU |
| KL10-042 | 42 | 52.7 | 4.2 | 1 | 3.5 | 46,04x3,53 | PTFE |
| KL10-042/1 | 42 | 57.1 | 6.3 | 1.3 | 5.5 | 47,00x5,33 | PTFE |
| KL10-043 | 43 | 53.7 | 4.2 | 1 | 3.5 | 47,22x3,53 | PTFE |
| KL10-045 | 45 | 60.1 | 6.3 | 1.3 | 5.5 | 50,16x5,33 | PTFE |
| KL10-045/1 | 45 | 55.7 | 4.2 | 1 | 3.5 | 49,21x3,53 | PTFE |
| KL10-048 | 48 | 63.1 | 6.3 | 1.3 | 5.5 | 53,34x5,33 | PTFE |
| KL10-048/1 | 48 | 58.7 | 4.2 | 1 | 3.5 | 52,39x3,53 | PTFE |
| KL10-050 | 50 | 65.1 | 6.3 | 1.3 | 5.5 | 56,52x5,33 | PTFE |
| KL10-050 unità di elaborazione | 50 | 65.1 | 6.3 | 1.3 | 5.5 | 56,52x5,33 | PU |
| KL10-050/1 | 50 | 60.7 | 4.2 | 1 | 3.5 | 53,57x3,53 | PTFE |
| KL10-050/1 UI | 50 | 60.7 | 4.2 | 1 | 3.5 | 53,57x3,53 | PU |
| KL10-052 | 52 | 62.7 | 4.2 | 1 | 3.5 | 56,74x3,53 | PTFE |
| KL10-052/1 | 52 | 67.1 | 6.3 | 1.3 | 5.5 | 56,52x5,33 | PTFE |
| KL10-055 | 55 | 70.1 | 6.3 | 1.3 | 5.5 | 59,70x5,33 | PTFE |
| KL10-055/1 | 55 | 65.7 | 4.2 | 1 | 3.5 | 58,74x3,53 | PTFE |
| KL10-056 | 56 | 71.1 | 6.3 | 1.3 | 5.5 | 62,87x5,33 | PTFE |
| KL10-056 Unità di elaborazione | 56 | 71.1 | 6.3 | 1.3 | 5.5 | 62,87x5,33 | PU |
| KL10-056/1 | 56 | 66.7 | 4.2 | 1 | 3.5 | 59,92x3,53 | PTFE |
| KL10-057 | 57 | 72.1 | 6.3 | 1.3 | 5.5 | 62,87x5,33 | PTFE |
| KL10-060 | 60 | 75.1 | 6.3 | 1.3 | 5.5 | 66,04x5,33 | PTFE |
| KL10-060 unità di elaborazione | 60 | 75.1 | 6.3 | 1.3 | 5.5 | 66,04x5,33 | PU |
| KL10-060/1 | 60 | 70.7 | 4.2 | 1 | 3.5 | 63,09x3,53 | PTFE |
| KL10-063 | 63 | 78.1 | 6.3 | 1.3 | 5.5 | 69,22x5,33 | PTFE |
| KL10-063 Unità di elaborazione | 63 | 78.1 | 6.3 | 1.3 | 5.5 | 69,22x5,33 | PU |
| KL10-063/1 | 63 | 73,7 | 4.2 | 1 | 3.5 | 66,27x3,53 | PTFE |
| KL10-065 | 65 | 80.1 | 6.3 | 1.3 | 3.5 | 72,40x5,33 | PTFE |
| KL10-065/1 | 65 | 75,7 | 4.2 | 1 | 3.5 | 69,85x3,53 | PTFE |
| KL10-067 | 67 | 82.1 | 6.3 | 1.3 | 5.5 | 72,40x5,33 | PTFE |
| KL10-068 | 68 | 83.1 | 6.3 | 1.3 | 5.5 | 72,40x5,33 | PTFE |
| KL10-068/1 | 68 | 78,7 | 4.2 | 1 | 3.5 | 72,62x3,53 | PTFE |
| KL10-070 | 70 | 85.1 | 6.3 | 1.3 | 5.5 | 75,57x5,33 | PTFE |
| KL10-070 Unità di elaborazione | 70 | 85.1 | 6.3 | 1.3 | 5.5 | 75,57x5,33 | PU |
| KL10-070/1 | 70 | 80.7 | 4.2 | 1 | 3.5 | 73,03x3,53 | PTFE |
| KL10-070/2 | 70 | 90,5 | 8.1 | 1.8 | 7.5 | 77,00x7,00 | PTFE |
| KL10-073 | 73 | 88.1 | 6.3 | 1.3 | 5.5 | 78,74x5,33 | PTFE |
| KL10-075 | 75 | 90.1 | 6.3 | 1.3 | 5.5 | 79,77x5,33 | PTFE |
| KL10-075/2 | 75 | 85,7 | 4.2 | 1 | 3.5 | 78,97x3,53 | PTFE |
| KL10-078 | 78 | 93.1 | 6.3 | 1.3 | 5.5 | 81,92x5,33 | PTFE |
| KL10-080 | 80 | 95.1 | 6.3 | 1.3 | 5.5 | 85,09x5,33 | PTFE |
| KL10-080 unità di elaborazione | 80 | 95.1 | 6.3 | 1.3 | 5.5 | 85,09x5,33 | PU |
| KL10-080/1 | 80 | 90,7 | 4.2 | 1 | 3.5 | 85,32x3,53 | PTFE |
| KL10-085 | 85 | 100.1 | 6.3 | 1.3 | 5.5 | 91,44x5,33 | PTFE |
| KL10-085 Unità di elaborazione | 85 | 100.1 | 6.3 | 1.3 | 5.5 | 91,44x5,33 | PU |
| KL10-085/1 | 85 | 95,7 | 4.2 | 1 | 3.5 | 88,50x3,53 | PTFE |
| KL10-085/2 | 85 | 105,5 | 8.1 | 1.8 | 7.5 | 92,00x7 | PTFE |
| KL10-090 | 90 | 105.1 | 6.3 | 1.3 | 5.5 | 94,62x5,33 | PTFE |
| KL10-090 Unità di elaborazione | 90 | 105.1 | 6.3 | 1.3 | 5.5 | 94,62x5,33 | PU |
| KL10-090/1 | 90 | 100,7 | 4.2 | 1 | 3.5 | 94,84x3,53 | PTFE |
| KL10-092 | 92 | 107.1 | 6.3 | 1.3 | 5.5 | 97,80x5,33 | PTFE |
| KL10-095 | 95 | 110.1 | 6.3 | 1.3 | 5.5 | 100,97x5,33 | PTFE |
| KL10-095 Unità di elaborazione | 95 | 110.1 | 6.3 | 1.3 | 5.5 | 100,97x5,33 | PU |
| KL10-095/1 | 95 | 115,5 | 8.1 | 1.8 | 7.5 | 104,14x6,99 | PTFE |
| KL10-100 | 100 | 115.1 | 6.3 | 1.3 | 5.5 | 104,14x5,33 | PTFE |
| KL10-100 unità di elaborazione | 100 | 115.1 | 6.3 | 1.3 | 5.5 | 104,14x5,33 | PU |
| KL10-100/1 | 100 | 110.7 | 4.2 | 1 | 3.5 | 104,37x3,53 | PTFE |
| KL10-105 | 105 | 125,5 | 8.1 | 1.8 | 7.5 | 113,67x6,99 | PTFE |
| KL10-105/1 | 105 | 120.1 | 6.3 | 1.3 | 5.5 | 110,49x5,33 | PTFE |
| KL10-105/1 UI | 105 | 120.1 | 6.3 | 1.3 | 5.5 | 110,49x5,33 | PU |
| KL10-110 | 110 | 125.1 | 6.3 | 1.3 | 5.5 | 116,84x5,33 | PTFE |
| KL10-110 unità di elaborazione | 110 | 125.1 | 6.3 | 1.3 | 5.5 | 116,84x5,33 | PU |
| KL10-110/1 | 110 | 130,5 | 8.1 | 1.8 | 7.5 | 116,84x6,99 | PTFE |
| KL10-110/2 | 110 | 120,7 | 4.2 | 1 | 3.5 | 113,90x3,53 | PTFE |
| KL10-115 | 115 | 130.1 | 6.3 | 1.3 | 5.5 | 120,02x5,33 | PTFE |
| KL10-120 | 120 | 135.1 | 6.3 | 1.3 | 5.5 | 126,57x5,33 | PTFE |
| KL10-120 unità di elaborazione | 120 | 135.1 | 6.3 | 1.3 | 5.5 | 126,57x5,33 | PU |
| KL10-125 | 125 | 140.1 | 6.3 | 1.3 | 5.5 | 129,54x5,33 | PTFE |
| KL10-125 unità di elaborazione | 125 | 140.1 | 6.3 | 1.3 | 5.5 | 129,54x5,33 | PU |
| KL10-125/1 | 125 | 145,5 | 8.1 | 1.8 | 7.5 | 132,72x6,99 | PTFE |
| KL10-127 | 127 | 142.1 | 6.3 | 1.3 | 5.5 | 130,20x5,33 | PTFE |
| KL10-130 | 130 | 145.1 | 6.3 | 1.3 | 5.5 | 135,90x5,33 | PTFE |
| KL10-130 unità di elaborazione | 130 | 145.1 | 6.3 | 1.3 | 5.5 | 135,90x5,33 | PU |
| KL10-130/1 | 130 | 150,5 | 8.1 | 1.8 | 7.5 | 139,07x6,99 | PTFE |
| KL10-132 | 132 | 147.1 | 6.3 | 1.3 | 5.5 | 135,9x5,33 | PTFE |
| KL10-135 | 135 | 150.1 | 6.3 | 1.3 | 5.5 | 139,07x5,33 | PU |
| KL10-137 | 137 | 152.1 | 6.3 | 1.3 | 5.5 | 142,24x5,33 | PTFE |
| KL10-138 | 138 | 153.1 | 6.3 | 1.3 | 5.5 | 142,24x5,33 | PTFE |
| KL10-140 | 140 | 155.1 | 6.3 | 1.3 | 5.5 | 145,42x5,33 | PTFE |
| KL10-140 unità di elaborazione | 140 | 155.1 | 6.3 | 1.3 | 5.5 | 145,42x5,33 | PU |
| KL10-140/1 | 140 | 160,5 | 8.1 | 1.8 | 7.5 | 145,42x6,99 | PTFE |
| KL10-145 | 145 | 160.1 | 6.3 | 1.3 | 5.5 | 151,77x5,33 | PTFE |
| KL10-145/1 | 145 | 165,5 | 8.1 | 1.8 | 7.5 | 151,77x6,99 | PTFE |
| KL10-150 | 150 | 165.1 | 6.3 | 1.3 | 5.5 | 155,00x5,33 | PTFE |
| KL10-150 unità di elaborazione | 150 | 165.1 | 6.3 | 1.3 | 5.5 | 155,00x5,33 | PU |
| KL10-150/1 | 150 | 170,5 | 8.1 | 1.8 | 7.5 | 158,12x6,99 | PTFE |
| KL10-153 | 153 | 168.1 | 6.3 | 1.3 | 5.5 | 158,12x5,33 | PTFE |
| KL10-155 | 155 | 170.1 | 6.3 | 1.3 | 5.5 | 158,12x5,33 | PTFE |
| KL10-160 | 160 | 175.1 | 6.3 | 1.3 | 5.5 | 164,47x5,33 | PTFE |
| KL10-160 unità di elaborazione | 160 | 175.1 | 6.3 | 1.3 | 5.5 | 164,47x5,33 | PU |
| KL10-160/1 | 160 | 180,5 | 8.1 | 1.8 | 7.5 | 168,3x6,99 | PTFE |
| KL10-165 | 165 | 180.1 | 6.3 | 1.3 | 5.5 | 170,82x5,33 | PTFE |
| KL10-170 | 170 | 185.1 | 6.3 | 1.3 | 5.5 | 177,17x5,33 | PTFE |
| KL10-170/1 | 170 | 190,5 | 8.1 | 1.8 | 7.5 | 177,17x6,99 | PTFE |
| KL10-172/1 | 172 | 192,5 | 8.1 | 1.8 | 7.5 | 177,17x6,99 | PTFE |
| KL10-175 | 175 | 190.1 | 6.3 | 1.3 | 5.5 | 177,17x5,33 | PTFE |
| KL10-180 | 180 | 195.1 | 6.3 | 1.3 | 5.5 | 183,52x5,33 | PTFE |
| KL10-180 unità di elaborazione | 180 | 195.1 | 6.3 | 1.3 | 5.5 | 183,52x5,33 | PU |
| KL10-180/1 | 180 | 200,5 | 8.1 | 1.8 | 5.5 | 187,30x6,99 | PTFE |
| KL10-185 | 185 | 200.1 | 6.3 | 1.3 | 5.5 | 189,87x5,33 | PTFE |
| KL10-190 | 190 | 205.1 | 6.3 | 1.3 | 5.5 | 196,22x5,33 | PTFE |
| KL10-192 | 192 | 207.1 | 6.3 | 1.3 | 5.5 | 196,22x5,33 | PTFE |
| KL10-195 | 195 | 210.1 | 6.3 | 1.3 | 5.5 | 202,57x5,33 | PTFE |
| KL10-200 | 200 | 220,5 | 8.1 | 1.8 | 7.5 | 208,92x6,99 | PTFE |
| KL10-200/1 | 200 | 215.1 | 6.3 | 1.3 | 5.5 | 202,57x5,33 | PTFE |
| KL10-205 | 205 | 225,5 | 8.1 | 1.8 | 7.5 | 215,27x6,99 | PTFE |
| KL10-210 | 210 | 230,5 | 8.1 | 1.8 | 7.5 | 215,27x6,99 | PTFE |
| KL10-212 | 212 | 232,5 | 8.1 | 1.8 | 7.5 | 215,27x6,99 | PTFE |
| KL10-215 | 215 | 235,5 | 8.1 | 1.8 | 7.5 | 221,62x6,99 | PTFE |
| KL10-220 | 220 | 240,5 | 8.1 | 1.8 | 7.5 | 227,97x6,99 | PTFE |
| KL10-225 | 225 | 245,5 | 8.1 | 1.8 | 7.5 | 234,32x6,99 | PTFE |
| KL10-230 | 230 | 250,5 | 8.1 | 1.8 | 7.5 | 240,67x6,99 | PTFE |
| KL10-235 | 235 | 255,5 | 8.1 | 1.8 | 7.5 | 240,67x6,99 | PTFE |
| KL10-240 | 240 | 260,5 | 8.1 | 1.8 | 7.5 | 247,00x6,99 | PTFE |
| KL10-245 | 245 | 265,5 | 8.1 | 1.8 | 7.5 | 253,57x6,99 | PTFE |
| KL10-250 | 250 | 270,5 | 8.1 | 1.8 | 7.5 | 259,70x6,99 | PTFE |
| KL10-260 | 260 | 284 | 8.1 | 1.8 | 8 | 272,40x6,99 | PTFE |
| KL10-260/1 | 260 | 280,5 | 8.1 | 1.8 | 7.5 | 266,07x6,99 | PTFE |
| KL10-265 | 265 | 289 | 8.1 | 1.8 | 8 | 278,77x6,99 | PTFE |
| KL10-270 | 270 | 294 | 8.1 | 1.8 | 8 | 278,77x6,99 | PTFE |
| KL10-275 | 275 | 299 | 8.1 | 1.8 | 8 | 285,10x6,99 | PTFE |
| KL10-280 | 280 | 304 | 8.1 | 1.8 | 8 | 291,47x6,99 | PTFE |
| KL10-285 | 285 | 309 | 8.1 | 1.8 | 8 | 297,88x6,99 | PTFE |
| KL10-290 | 290 | 314 | 8.1 | 1.8 | 8 | 297,88x6,99 | PTFE |
| KL10-295 | 295 | 319 | 8.1 | 1.8 | 8 | 304,17x6,99 | PTFE |
| KL10-300 | 300 | 324 | 8.1 | 1.8 | 8 | 310,50x6,99 | PTFE |
| KL10-300/1 | 300 | 320,5 | 8.1 | 1.8 | 7.5 | 310,50x6,99 | PTFE |
| KL10-310 | 310 | 334 | 8.1 | 1.8 | 8 | 316,87x6,99 | PTFE |
| KL10-320 | 320 | 344 | 8.1 | 1.8 | 5.5 | 329,57x6,99 | PTFE |
| KL10-330 | 330 | 354 | 8.1 | 1.8 | 8 | 342,27x6,99 | PTFE |
| KL10-340 | 340 | 364 | 8.1 | 1.8 | 8 | 354,90x6,99 | PTFE |
| KL10-345 | 345 | 369 | 8.1 | 1.8 | 8 | 354,90x6,99 | PTFE |
| KL10-350 | 350 | 374 | 8.1 | 1.8 | 8 | 367,67x6,99 | PTFE |
| KL10-360 | 360 | 384 | 8.1 | 1.8 | 8 | 367,67x6,99 | PTFE |
| KL10-370 | 370 | 394 | 8.1 | 1.8 | 8 | 380,37x6,99 | PTFE |
| KL10-375 | 375 | 399 | 8.1 | 1.8 | 8 | 380,37x6,99 | PTFE |
| KL10-380 | 380 | 404 | 8.1 | 1.8 | 8 | 393,07x6,99 | PTFE |
| KL10-390 | 390 | 414 | 8.1 | 1.8 | 8 | 405,26x6,99 | PTFE |
| KL10-400 | 400 | 424 | 8.1 | 1.8 | 8 | 417,96x6,99 | PTFE |
| KL10-405 | 405 | 429 | 8.1 | 1.8 | 8 | 417,96x6,99 | PTFE |
| KL10-410 | 410 | 434 | 8.1 | 1.8 | 8 | 417,96x6,99 | PTFE |
| KL10-420 | 420 | 444 | 8.1 | 1.8 | 8 | 430,66x6,99 | PTFE |
| KL10-430 | 430 | 454 | 8.1 | 1.8 | 8 | 443,36x6,99 | PTFE |
| KL10-435 | 435 | 459 | 8.1 | 1.8 | 8 | 443,36x6,99 | PTFE |
| KL10-440 | 440 | 464 | 8.1 | 1.8 | 8 | 443,36x6,99 | PTFE |
| KL10-450 | 450 | 474 | 8.1 | 1.8 | 8 | 456,06x6,99 | PTFE |
| KL10-460 | 460 | 484 | 8.1 | 1.8 | 8 | 468,76x6,99 | PTFE |
| KL10-470 | 470 | 494 | 8.1 | 1.8 | 8 | 481,46x6,99 | PTFE |
| KL10-480 | 480 | 504 | 8.1 | 1.8 | 8 | 494,16x6,99 | PTFE |
| KL10-490 | 490 | 514 | 8.1 | 1.8 | 8 | 494,16x6,99 | PTFE |
| KL10-500 | 500 | 524 | 8.1 | 1.8 | 8 | 506,86x6,99 | PTFE |
| KL10-510 | 510 | 534 | 8.1 | 1.8 | 8 | 532,26x6,99 | PTFE |
| KL10-520 | 520 | 544 | 8.1 | 1.8 | 8 | 532,26x6,99 | PTFE |
| KL10-530 | 530 | 554 | 8.1 | 1.8 | 8 | 532,26x6,99 | PTFE |
| KL10-540 | 540 | 564 | 8.1 | 1.8 | 8 | 557,66x6,99 | PTFE |
| KL10-550 | 550 | 574 | 8.1 | 1.8 | 8 | 557,66x6,99 | PTFE |
| KL10-560 | 560 | 584 | 8.1 | 1.8 | 8 | 582,68x6,99 | PTFE |
| KL10-570 | 570 | 594 | 8.1 | 1.8 | 8 | 582,68x6,99 | PTFE |
Invii la vostra indagine direttamente noi
