Name: KL61 Anello di guida della canna del pistone elementi di guida compositi
Brand: Kelong
SKU: KL61
Rating: 5 (123 reviews)

Casa > prodotti > Anello di guida idraulica >

KL61 Anello di guida della canna del pistone elementi di guida compositi

KL61 Anello di guida della verga

Anello di guida della canna del pistone

Luogo di origine:

Cina

Marca:

Kelong

Certificazione:

ISO9001 / IRIS

Numero di modello:

KL61

Contattici

Richieda una citazione

KL61 Anello di guida della canna del pistone elementi di guida compositi

Dettagli del prodotto

Nome:

Anello di guida della verga

Materiale:

FENOLICS ARAMID

Temperatura (massimo) °C:

-40/+200

Velocità di scorrimento (max) - m/s:

1.0

Stile:

Elementi di guida idraulici

Applicazione:

Industria siderurgica / Bolle pesanti

Termini di trasporto & di pagamento

Imballaggi particolari:

Sacchetti di opp

Tempi di consegna:

7-15 giorni lavorativi

Termini di pagamento:

L/C, T/T, Paypal

Capacità di alimentazione:

100,000 pcs/mese

gli anelli di guida a pistoni e barre KL61 sono elementi di guida compositi,prodotto a partire da tessuto di aramide e resina fenolica che fornisce un'elevata capacità di carico progettato per essere utilizzato in applicazioni a barre e pistoni in sistemi idrauliciRispetto ai normali anelli di guida compositi, KL61 ha una maggiore resistenza alle temperature a causa del tessuto Aramid.

Vantaggi

• Funzionamento ad alta temperatura

• Alta stabilità della forma nell'intervallo di temperatura di funzionamento

• Facile da installare

• Ampia gamma di dimensioni

• Può essere utilizzato in applicazioni pesanti e medie

Area di applicazione

• industria siderurgica

• Macchine mobili

• Serbatoi pesanti

KL61 Anello di guida della canna del pistone elementi di guida compositi 0

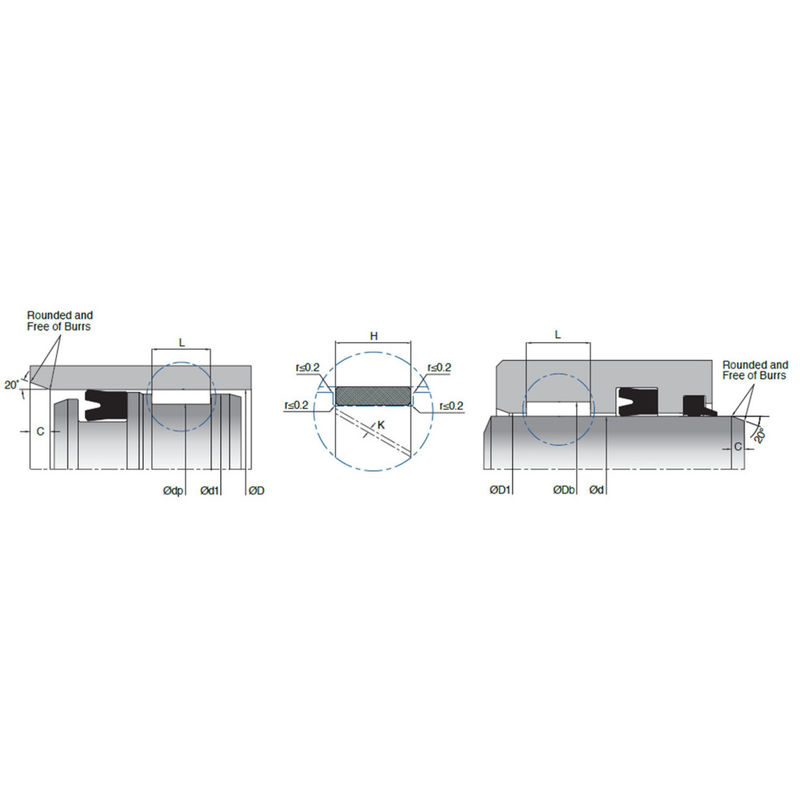

	d(f8) dp(h8)	Db(H8) D(H9)	L (+0,2/-0)	H	d1 (h9)	D1 (H9)	Materiale
KL61-040	40	45	9.7	9.5	43.2	41.8	FENOLICS ARAMID
KL61-050	50	55	9.7	9.5	53.2	51.8	FENOLICS ARAMID
KL61-050/1	50	55	15	14.8	53.2	51.8	FENOLICS ARAMID
KL61-055	55	60	15	14.8	58.2	56.8	FENOLICS ARAMID
KL61-055/1	55	60	9.7	9.5	58.2	56.8	FENOLICS ARAMID
KL61-058	58	63	9.7	9.5	61.2	59.8	FENOLICS ARAMID
KL61-060	60	65	15	14.8	63.2	61.8	FENOLICS ARAMID
KL61-060/1	60	65	9.7	9.5	63.2	61.8	FENOLICS ARAMID
KL61-063	63	68	9.7	d	66.2	64.8	FENOLICS ARAMID
KL61-063/1	63	68	15	14.8	66.2	64.8	FENOLICS ARAMID
KL61-065	65	70	15	14.8	68.2	66.8	FENOLICS ARAMID
KL61-065/1	65	70	9.7	9.5	68.2	66.8	FENOLICS ARAMID
KL61-070	70	75	9.7	9.5	73.2	71.8	FENOLICS ARAMID
KL61-070/1	70	75	15	14.8	73.2	71.8	FENOLICS ARAMID
KL61-075	75	80	9.7	9.5	78.2	76.8	FENOLICS ARAMID
KL61-075/1	75	80	15	14.8	78.2	76.8	FENOLICS ARAMID
KL61-080	80	85	9.7	9.5	83.2	81.8	FENOLICS ARAMID
KL61-080/1	80	85	15	14.8	83.2	81.8	FENOLICS ARAMID
KL61-085	85	90	9.7	9.5	88.2	86.8	FENOLICS ARAMID
KL61-085/1	85	90	15	14.8	88.2	86.8	FENOLICS ARAMID
KL61-090	90	95	15	14.8	93.2	91.8	FENOLICS ARAMID
KL61-090/1	90	95	9.7	9.5	93.2	91.8	FENOLICS ARAMID
KL61-095	95	100	9.7	9.5	98.2	96.8	FENOLICS ARAMID
KL61-095/1	95	100	15	14.8	98.2	96.8	FENOLICS ARAMID
KL61-100	100	105	15	14.8	103.2	101.8	FENOLICS ARAMID
KL61-100/1	100	105	9.7	9.5	103.2	101.8	FENOLICS ARAMID
KL61-105	105	110	9.7	9.5	108.2	106.8	FENOLICS ARAMID
KL61-105/1	105	110	15	14.8	108.2	106.8	FENOLICS ARAMID
KL61-110	110	115	9.7	9.5	113.2	111.8	FENOLICS ARAMID
KL61-110/1	110	115	15	14.8	113.2	111.8	FENOLICS ARAMID
KL61-110/2	110	115	8.1	7.9	113.2	111.8	FENOLICS ARAMID
KL61-115	115	120	9.7	9.5	118.2	116.8	FENOLICS ARAMID
KL61-115/1	115	120	15	14.8	118.2	116.8	FENOLICS ARAMID
KL61-115/2	115	120	8.1	7.9	118.2	116.8	FENOLICS ARAMID
KL61-120	120	125	9.7	9.5	123.2	121.8	FENOLICS ARAMID
KL61-120/1	120	125	15	14.8	123.2	121.8	FENOLICS ARAMID
KL61-120/2	120	125	8.1	7.9	123.2	121.8	FENOLICS ARAMID
KL61-125	125	130	9.7	9.5	128.2	126.8	FENOLICS ARAMID
KL61-125/1	125	130	15	14.8	128.2	126.8	FENOLICS ARAMID
KL61-125/3	125	130	14.2	14	128.2	126.8	FENOLICS ARAMID
KL61-130	130	135	9.7	9.5	133.2	131.8	FENOLICS ARAMID
KL61-130/1	130	135	15	14.8	133.2	131.8	FENOLICS ARAMID
KL61-130/3	130	135	8.1	7.9	133.2	131.8	FENOLICS ARAMID
KL61-135	135	140	9.7	9.5	138.2	136.8	FENOLICS ARAMID
KL61-135/1	135	140	15	14.8	138.2	136.8	FENOLICS ARAMID
KL61-135/2	135	140	8.1	7.9	138.2	136.8	FENOLICS ARAMID
KL61-140	140	145	9.7	9.5	143.2	141.8	FENOLICS ARAMID
KL61-140/1	140	145	15	14.8	143.2	141.8	FENOLICS ARAMID
KL61-140/3	140	145	20	19.8	143.2	141.8	FENOLICS ARAMID
KL61-145	145	150	9.7	9.5	148.2	146.8	FENOLICS ARAMID
KL61-145/1	145	150	15	14.8	148.2	146.8	FENOLICS ARAMID
KL61-150	150	155	15	14.8	153.2	151.8	FENOLICS ARAMID
KL61-150/1	150	155	9.7	9.5	153.2	151.8	FENOLICS ARAMID
KL61-150/2	150	155	12.5	12.3	153.2	151.8	FENOLICS ARAMID
KL61-155	155	160	9.7	9.5	158.2	156.8	FENOLICS ARAMID
KL61-155/1	155	160	15	14.8	158.2	156.8	FENOLICS ARAMID
KL61-160	160	165	9.7	9.5	163.2	161.8	FENOLICS ARAMID
KL61-160/1	160	165	15	14.8	163.2	161.8	FENOLICS ARAMID
KL61-164	164	170	9.7	9.5	167.6	166.4	FENOLICS ARAMID
KL61-165	165	170	9.7	9.5	168.2	166.8	FENOLICS ARAMID
KL61-165/1	165	170	15	14.8	168.2	166.8	FENOLICS ARAMID
KL61-170	170	175	9.7	9.5	173.2	171.8	FENOLICS ARAMID
KL61-170/1	170	175	15	14.8	173.2	171.8	FENOLICS ARAMID
KL61-174	174	180	15	14.8	177.6	176.4	FENOLICS ARAMID
KL61-175	175	180	9.7	9.5	178.2	176.8	FENOLICS ARAMID
KL61-175/1	175	180	15	14.8	178.2	176.8	FENOLICS ARAMID
KL61-180	180	185	15	14.8	183.2	181.8	FENOLICS ARAMID
KL61-180/1	180	185	9.7	9.5	183.2	181.8	FENOLICS ARAMID
KL61-184	184	190	15	14.8	187.6	186.4	FENOLICS ARAMID
KL61-185	185	190	9.7	9.5	188.2	186.8	FENOLICS ARAMID
KL61-185/1	185	190	15	14.8	188.2	186.8	FENOLICS ARAMID
KL61-190	190	195	9.7	9.5	193.2	191.8	FENOLICS ARAMID
KL61-190/1	190	195	15	14.8	193.2	191.8	FENOLICS ARAMID
KL61-194	194	200	20	19.8	197.6	196.4	FENOLICS ARAMID
KL61-195	195	200	9.7	9.5	198.2	196.8	FENOLICS ARAMID
KL61-195/1	195	200	15	14.8	198.2	196.8	FENOLICS ARAMID
KL61-209	209	215	20	19.8	212.6	211.4	FENOLICS ARAMID
KL61-210	210	215	25	24.5	213.2	211.8	FENOLICS ARAMID
KL61-215	215	220	15	14.8	218.2	216.8	FENOLICS ARAMID
KL61-219	219	225	20	19.8	222.6	221.4	FENOLICS ARAMID
KL61-224	224	230	25	24.5	227.6	226.4	FENOLICS ARAMID
KL61-229	229	235	20	19.8	232.6	231.4	FENOLICS ARAMID
KL61-234	234	240	25	24.5	237.6	236.4	FENOLICS ARAMID
KL61-235	235	240	25	24.5	238.2	236.8	FENOLICS ARAMID
KL61-240	240	248	25	24.5	245	243	FENOLICS ARAMID
KL61-244	244	250	25	24.5	247.6	246.4	FENOLICS ARAMID
KL61-245/1	245	250	25	24.5	248.2	246.8	FENOLICS ARAMID
KL61-245/2	245	250	15	14.8	248.2	246.8	FENOLICS ARAMID
KL61-245/3	245	250	20	19.8	248.2	246.8	FENOLICS ARAMID
KL61-250	250	255	40	39.5	253.2	251.8	FENOLICS ARAMID
KL61-254	254	260	25	24.5	257.6	256.4	FENOLICS ARAMID
KL61-254/1	254	260	30	29.5	257.6	256.4	FENOLICS ARAMID
KL61-260	260	265	25	24.5	263.2	261.8	FENOLICS ARAMID
KL61-279	279	285	25	24.5	282.6	281.4	FENOLICS ARAMID
KL61-280	280	285	25	24.5	283.2	281.8	FENOLICS ARAMID
KL61-294	294	300	35	34.5	297.6	296.4	FENOLICS ARAMID
KL61-295	295	300	25	24.5	298.2	296.8	FENOLICS ARAMID
KL61-315	315	320	25	24.5	318.2	316.8	FENOLICS ARAMID
